유압펌프

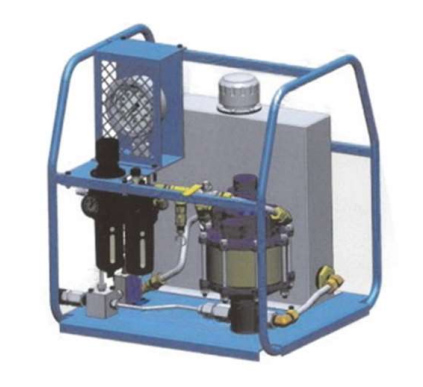

AIR DRIVEN BOLT TENSIONER PUMP

Working pressure :

1500 bar

Reservoir Capacity :

7.5 litres

Compact, lightweight, rugged steel frame for protection and easy handling
Air driven hydraulic bolt tensioner pump
Easily adjustable output pressure control
Fitted with glycerine filled vibra-gauge and quick connect high pressure outlet coupling
Airline filter regulator lubricator unit fitted as standard

Model number	Power supply	Output Flow Rate at 0 bar	Output Flow Rate at 1500 bar	Outlet Coupler	Net weight (Kg)
SAB-1500B-S	7 bar air	0.43 (l/min)	0.07 (l/min)	116 1202	22
