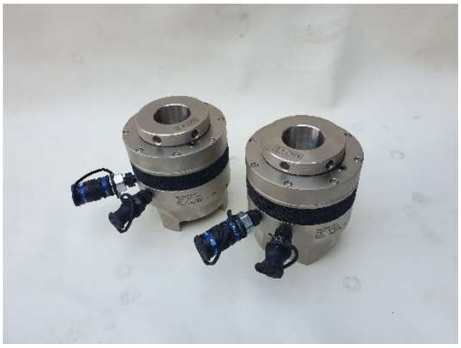

BLT Series
TOPSIDE BOLT TENSIONERS - INCH
Maximum Capacities from :
234 to 2649 kN
Bolt sizes from :
3/4"~4"
Maximum Operating Pressure :
1500 bar
- Twin ports for quick connection of multiple tools
- Detachable and rotational bridge simplifies tool positioning
- Piston stroke indicator
- Single acting design with manual piston retraction
- Customised and special design tensioners are available on request
|
Model
number |
Bolt thread size (inch) |
Capacity
|
Cylinder
Effective Area (㎠) |
Stroke(mm) |
Weight
(kg) |
|
|
kN
|
tonnes | |||||
|
BLT1-075L1
|
3/4-10UNC |
234
|
23.9
|
15.6
|
10 |
1.7
|
|
BLT1-087L1
|
7/8-9UNC |
234
|
23.9
|
15.6
|
10 |
1.7
|
|
BLT1-100L2
|
1-8UN |
234
|
23.9
|
15.6
|
10 |
1.9
|
|
BLT1-112L2
|
1 1/8-8UN |
234
|
23.9
|
15.6
|
10 |
1.9
|
|
BLT2-125L1
|
1 1/4-8UN |
457
|
46.6
|
30.5
|
15 |
3.5
|
|
BLT2-137L1
|
1 3/8-8UN |
457
|
46.6
|
30.5
|
15 |
3.5
|
|
BLT2-150L1
|
1 1/2-8UN |
457
|
46.6
|
30.5
|
15 |
3.5
|
|
BLT3-162L1
|
1 5/8-8UN |
822
|
83.8
|
54.8
|
15 |
6.1
|
|
BLT3-175L1
|
1 3/4-8UN |
822
|
83.8
|
54.8
|
15 |
6.1
|
|
BLT3-175L2
|
1 3/4-8UN |
822
|
83.8
|
54.8
|
15 |
6.3
|
|
BLT3-187L1
|
1 7/8-8UN |
822
|
83.8
|
54.8
|
15 |
6.1
|
|
BLT3-187L2
|
1 7/8-8UN |
822
|
83.8
|
54.8
|
15 |
6.3
|
|
BLT3-200L2
|
2-8UN |
822
|
83.8
|
54.8
|
15 |
6.3
|
|
BLT4-187L1
|
1 7/8-8UN |
1264
|
128.9
|
84.3
|
15 |
10.6
|
|
BLT4-200L1
|
2-8UN |
1264
|
128.9
|
84.3
|
15 |
10.6
|
|
BLT4-200L2
|
1 7/8-8UN |
1264
|
128.9
|
84.3
|
15 |
11.8
|
|
BLT4-225L2
|
2 1/4-8UN |
1264
|
128.9
|
84.3
|
15 |
11.8
|
|
BLT4-250L2
|
2 1/2-8UN |
1264
|
128.9
|
84.3
|
15 |
11.8
|
|
BLT5-250L1
|
2 1/2-8UN |
1833
|
186.9
|
122.2
|
15 |
16.0
|
|
BLT5-275L1
|
2 3/4-8UN |
1833
|
186.9
|
122.2
|
15 |
16.0
|
|
BLT5-300L1
|
3-8UN |
1264
|
128.9
|
84.3
|
15 |
11.8
|
|
BLT6-300L1
|
3-8UN |
2649
|
270
|
176.6
|
15 |
23.5
|
|
BLT6-325L1
|
3 1/4-8UN |
2649
|
270
|
176.6
|
15 |
23.5
|
|
BLT6-350L1
|
3 1/2-8UN |
2649
|
270
|
176.6
|
15 |
23.5
|
|
BLT6-375L3
|
3 3/4-8UN |
2649
|
270
|
176.6
|
15 |
29.1
|
|
BLT6-400L3
|
4-8UN |
2649
|
270
|
176.6
|
15 |
29.1
|

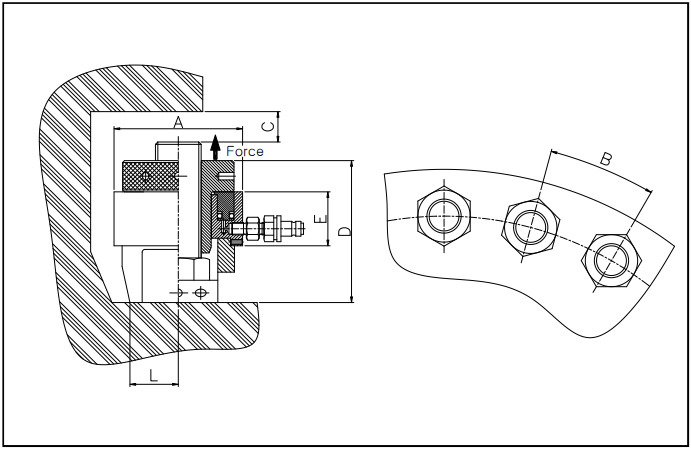

DIMENSIONS
|
Model
number |
Dimensions (mm)
|
|||||
|
A
|
B
|
C (min)
|
D
|
E
|
L
|
|
|
BLT1-075L1
|
74
|
51
|
74
|
90
|
45
|
28 |
|
BLT1-087L1
|
74
|
54
|
74
|
90
|
45
|
28 |
|
BLT1-100L2
|
74
|
61
|
80
|
98
|
45
|
30 |
|
BLT1-112L2
|
74
|
64
|
80
|
98
|
45
|
30 |
|
BLT2-125L1
|
102
|
74
|
103
|
128
|
54
|
39 |
|
BLT2-137L1
|
102
|
77
|
103
|
128
|
54
|
39 |
|
BLT2-150L1
|
102
|
80
|
103
|
128
|
54
|
39 |
|
BLT3-162L1
|
133
|
92
|
115
|
150
|
56
|
47 |
|
BLT3-175L1
|
133
|
93
|
115
|
150
|
56
|
47 |
|
BLT3-175L2
|
133
|
104
|
117
|
155
|
56
|
50 |
|
BLT3-187L1
|
133
|
97
|
115
|
150
|
56
|
47 |
|
BLT3-187L2
|
133
|
104
|
117
|
155
|
56
|
50 |
|
BLT3-200L2
|
133
|
104
|
117
|
155
|
56
|
50 |
|
BLT4-187L1
|
163
|
104
|
119
|
149
|
57
|
50 |
|
BLT4-200L1
|
163
|
104
|
119
|
149
|
57
|
50 |
|
BLT4-200L2
|
163
|
106
|
119
|
149
|
57
|
62 |
|
BLT4-225L2
|
163
|
121
|
135
|
165
|
57
|
62 |
|
BLT4-250L2
|
163
|
127
|
135
|
165
|
57
|
62 |
|
BLT5-250L1
|
193
|
134
|
145
|
187
|
60
|
73 |
|
BLT5-275L1
|
193
|
140
|
145
|
187
|
60
|
73 |
|
BLT5-300L1
|
193
|
147
|
145
|
187
|
60
|
73 |
|
BLT6-300L1
|
233
|
161
|
178
|
216
|
64
|
84 |
|
BLT6-325L1
|
233
|
167
|
178
|
216
|
64
|
84 |
|
BLT6-350L1
|
233
|
172
|
178
|
216
|
64
|
84 |
|
BLT6-375L3
|
233
|
191
|
205
|
257
|
64
|
105 |
|
BLT6-400L3
|
233
|
196
|
205
|
257
|
64
|
105 |
